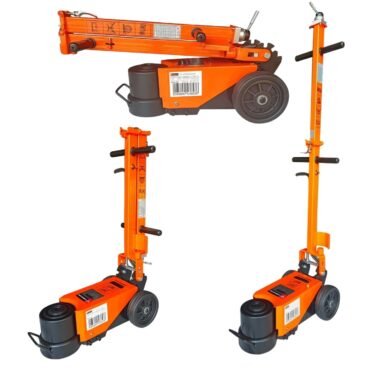

WIDMANN H60T is a 60 ton capacity pneumatic hydro jack with triple cylinder.
The WIDMANN H60T is a versatile jack with a large lifting range, suitable for garages, body shops and tyre centres.
Designed for heavy vehicles such as trucks, cranes, tractors, military vehicles, etc. Triple cylinder 60/30/18 tonnes.
Supplied with a long, adjustable handle with a holder for 2 extensions.
The 2 extensions supplied allow a wide range of vehicles to be lifted such as trucks, buses, trailers, etc. The cylinder is made of specially selected steel, and thanks to a heat treatment,
The cylinder is made of specially selected steel and, thanks to heat treatment, has an extremely high strength for the most difficult working conditions. Robust pump, completely stainless to be protected from compressor water.
70 mm diameter cylinder head Supplied with 2 extensions of ø 70 x 120 mm (CTA2406) and ø70 x 70 mm (CTA02410) Slow lowering,
Pump and cylinder made from high quality industrial components Integrated overload valve.
Minimum height 165 mm
Lifting height 3630 mm
Extended spindle 30-65 mm
Weight capacity 25-60 tonnes MAX
Operating air pressure 0,8-1,2 Mpa
Weight 35 Kg
