[HS-E3410] WIDMANN Interchangeable Fork Strut Coil Spring Compressor Extractor

Recommended Retail Price 289

Fast Shipping

1 to 3 working days

Pro Prices

Market aware

Quality First

Guaranteed

  • EAN code
    5430002989587
  • Weight Net/Gross
    14/14.5 kg
  • Dimensions LxWxH
    49 x 39 x 9 cm
  • Euro Pallet Volume
    1.92 m3
  • Per Box
    2 Unit(s)
  • Per Pallet
    56 Unit(s)
Reference HS-E3410 Categories ,
Description

WIDMANN Professional Auto Tool: The strut spring compressor is always used to assemble and disassemble the shock absorber springs. The fork spring compressor kit will help a lot if you need to replace worn support rods, broken springs, or upgrade springs for better appearance and operation.
· Complete Jaw Set: Three sets of configuration options can be used for 5.0 inches-8.3 inches (126-212 mm), 3.5 inches-6.3 inches (88-160 mm), 2.6 inches-4.9 inches (65-125 mm) shock absorber spring and one washer can meet most sizes of springs on the market.
· Superior Quality: Adopts premium solid steel material with heavy-duty construction, makes the strut compressor more sturdy and durable. The jaws with security lip lock the spring in place during compression and keep the operator away from danger.

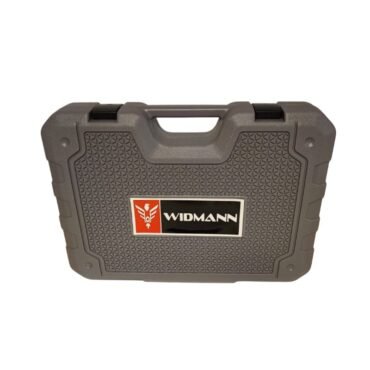

· Convenient Storage: There is 1 piece of compression rod, 3 pairs of interchangeable yokes, 1 piece of adjustment spacer, 6 pieces of fixing bolts in the package. And one blow case provided for easy carrying and storing.
· Easy To Use: You need to select two yokes that match the corresponding springs and then fix them on the compression rod with the provided screws and subsequently use a wrench, ratchet, or impact wrench to turn the lead screw until the spring is fully tensioned.

Application

Fits for Mercedes Benz: W163, 164, 171, 210, 211, 219, 230, 245, 251, 203 & 209 (4-matic only).
Fits for BMW: E31, E32, E34, E36, E38, E39, E52, E60, E61, E63, E64, E65, E66, E67, Z3, Z3 Coupe.
Fits for Chrysler, for Daihatsu, Daewoo, for Fiat, for Ford, for Honda, Hyundia, Jaquar, for Jeep, for KIA, for Mazda, Benz C and E class, Mistsubishi,
for Nissan, for Opel, for Renault, Mini, for Porsche, for Land Rover, for Saab, for Subaru, for Toyota, for Volvo, for VW.
Not designed for use with impact wrench. Hand ratchet only.

Jaw sizes

Gold perch: 2.500″ (65mm) – 4.920″ (125mm).
Black perch: 3.460″ (88mm) – 6.300″ (160mm).
Silver perch: 4.960″ (126mm) – 8.450″ (215mm).
Maximum perch distance 12.550″.

Technical Data

Operated with a ratchet or wrench with a 21 mm spanner width
1 pair of spring retainers for an 80-110 mm range of application
1 Pair of springs for a 105-145 mm range of application
1 Pair of springs for a 145-190 mm range of application
Maximum span width 300 mm

Feature

For springs with 80-190 mm diameter
Suitable for McPherson strut systems
Stable steel
Quick-change spring retainer for more safety in changing the spring
Spacer for up to 30 mm offset with tapered springs
Switching from strut bearings, shock absorbers and springs is safe and easy with this professional tool.
The 3 pairs of interchangeable spring retainers and the supplied spacer, allow compression of all forms and sizes of springs.

Additional information
Weight 14,5 kg
Color

Black
